A detailed breakdown of 16 foundational system design concepts — from DNS, Load Balancer, and API Gateway to Sharding, NoSQL, and Distributed Coordination — helping CTOs and decision-makers evaluate architecture proposals and communicate effectively with engineering teams.
Interviewing engineering candidates, evaluating an architecture proposal from your technical team, or deciding on infrastructure investment for the next stage of growth — in every one of these situations, the decision-maker doesn’t need to write code, but does need to understand what the components being discussed actually do. Misunderstanding a foundational concept easily leads to bad decisions: approving an architecture that’s more complex than the business actually needs, or underestimating the risk of a design that looks deceptively simple.

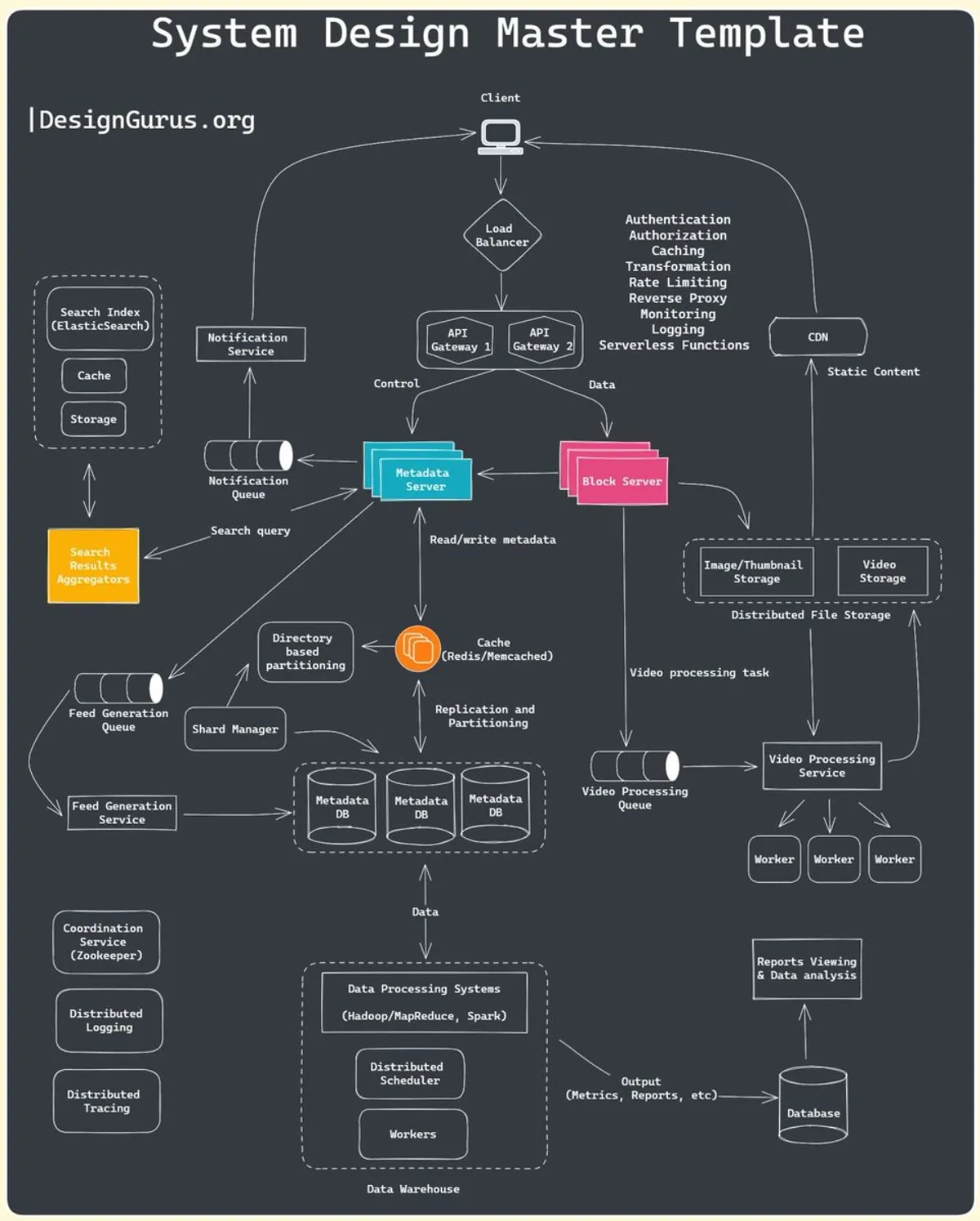

The diagram above illustrates the “System Design Master Template” — an overview map of the components that typically show up in a modern software system: Load Balancer, API Gateway, and CDN on the outer layer; Metadata Server, Cache, Sharding, Message Queue, Search Index, and Data Warehouse on the inner layers. The 16 concepts below walk through each piece of that picture, ordered the way a real request actually flows through a system: from the moment a user types a URL to the moment data is processed and returned.
DNS is the internet’s “phone book” — it exists because humans remember names (nexlifysolutions.io) better than numbers (192.0.2.1), but servers can only route traffic using IP addresses.
Resolution happens in several steps, not a single simple lookup:
nexlifysolutions.io, but it knows which server manages the .io domain..com), which returns the address of the authoritative name server — the source of truth for that domain.nexlifysolutions.io.Worth flagging when evaluating infrastructure: DNS caching (reduces how often the full resolver chain needs to run, directly affecting first-load time) and DNS load balancing — using DNS to return different IPs for the same domain, distributing load before a request even reaches your actual infrastructure.
A load balancer sits between clients and a pool of backend servers, deciding which request goes to which server. The goal: no single server gets overloaded while others sit idle, and failing servers get pulled out of rotation automatically (health checks).
Three common algorithms, each suited to a different situation:
Load balancers also come in two network-layer flavors: Layer 4 (routes by IP/port, fast but blind to HTTP content) and Layer 7 (understands HTTP headers, paths, cookies — enabling smarter routing, e.g. routing /api/v2 to a new cluster during a migration).
Once a system has dozens of microservices, letting clients call each service directly becomes a maintenance nightmare — clients need to know every service’s address, handle auth separately for each, and break every time a service changes its API. An API Gateway solves this by becoming a single entry point.
Its core responsibilities:
Worth distinguishing clearly: an API Gateway does not replace a Load Balancer. A load balancer distributes load across instances of the same service; an API Gateway routes between different services and handles logic at the application layer. Confusing these two roles when planning infrastructure often leaves a critical layer missing from the design.
A CDN solves a physical problem: the speed of light is finite, and the geographic distance between an origin server and a user creates latency that no amount of code can optimize away. The solution is placing copies of content in many locations around the world, closer to users.
How it works:
Cache-Control, ETag, or a configured TTL).In practice, CDNs aren’t just for images and video — many modern systems also cache API responses at the edge (edge caching for GET endpoints that rarely change), or use edge compute (Cloudflare Workers, Lambda@Edge) to run logic right at the edge, cutting round-trips to the origin.
These two get confused because they look structurally similar (a server sitting in the middle), but they serve opposite purposes:
A quick way to remember it: a forward proxy protects and controls the client; a reverse proxy protects and controls the server.
A cache is a high-speed storage layer (usually RAM) sitting between an application and its slower source of truth — disk, network calls, expensive database queries. The general rule: check the cache first (cache hit → return immediately); if it’s not there (cache miss), fetch from the source, store it in the cache, then return it.
In a real system, caching exists at multiple layers simultaneously, not just one place:
The critical design question isn’t “should we cache” but cache invalidation — when does cached data go stale, and how do you make sure users never see incorrect data. Three common strategies: TTL (expire after X seconds), write-through (update the cache the moment source data is written), and cache-aside (the application manages reads/writes to the cache itself — the most common approach in practice because it’s simple and flexible).
When a data table grows too large for a single server to hold or process, there are two ways to split it:
user_id). Each shard holds a subset of users, and when reading/writing a given user’s data, the system routes precisely to the shard that holds them. This is the primary way to scale write throughput once a single server can no longer hold all the data.Choosing the wrong shard key is the most common sharding mistake: if the key causes uneven data distribution (e.g. sharding by account creation date, but one day sees an unusual traffic spike), one shard becomes a hotspot — overloaded while others sit idle. Sharding also makes cross-shard operations (joining data across two users on different shards, or transactions spanning shards) considerably more complex and expensive — which is why sharding is usually a last resort, after read replicas and caching have already been maximized.
Replication is the technique of maintaining multiple copies of the same database across different servers — not to split data (like sharding), but to fully duplicate it.
The most common model: a single primary (master) handles all writes, while one or more replicas (slaves) sync data from the primary (via binlog replication or streaming replication, depending on the database engine). The application routes writes to the primary and reads to replicas.
Concrete benefits:
Worth checking when evaluating a system’s SLA and uptime: replication lag — the delay between when the primary writes data and when a replica catches up. If an application reads from a replica right after writing to the primary, users may see stale data (the “I just changed my name, why does it still show the old one?” scenario). This is the question to ask when a technical team proposes adding a replica: “What’s the maximum sync delay, and which business flows can’t tolerate that delay?“
When two services need to exchange information without depending on each other directly (if Service B goes down, Service A shouldn’t fail because of it), the solution is to put a message broker between them. Service A pushes a message onto a queue/topic, and Service B reads and processes it whenever it’s ready — the two are fully decoupled, both in timing and in deployment lifecycle.
Two main models:
Kafka additionally offers durable log storage (messages aren’t discarded after being read, and can be replayed), making it well-suited for both event sourcing and large-scale real-time data processing — which is why Kafka tends to be more common than RabbitMQ in data-intensive systems.
Microservices is an architecture that splits a large application into many small, independent services, each owning a specific business domain — the opposite of a monolith, where all logic lives in one codebase, deployed as one unit.
Core characteristics:
The trade-off worth weighing before approving a microservices architecture: it solves organizational scaling (multiple teams working independently) and technical scaling (scaling individual parts), but comes with a significant jump in operational complexity — service discovery, distributed tracing, API versioning across services, and handling network failures (which simply don’t exist in a monolith, where everything runs in one process). For small teams or early-stage products, microservices are often a cost paid upfront rather than a benefit realized — a decision that deserves careful thought, not a trend to follow by default.
NoSQL exists to solve problems that relational databases (fixed schema, heavy ACID transactions) aren’t optimized for: unstructured data, large volumes, and easy horizontal scaling. Four main categories, each suited to a different kind of problem:
Worth pushing back on when discussing database choice with a technical team: don’t accept “NoSQL is faster than SQL” as a blanket justification — ask them to be specific about what’s being traded away. NoSQL gives up strong consistency and complex join capability in exchange for horizontal scalability and flexible schema. The right choice depends on actual data shape and query patterns, not technology trends.
Without an index, a query like WHERE email = 'x@y.com' forces the database to scan every row in a table (full table scan) — fine with 1,000 rows, a disaster with 100 million. An index is an auxiliary data structure, like a book’s table of contents, that lets the database engine jump straight to the data it needs.
The most common type is the B-tree index — organizing data in a hierarchical tree, well-suited for exact lookups, range queries (WHERE age BETWEEN 20 AND 30), and sorting. There’s also hash indexes (fast for exact lookups but no range query support) and bitmap indexes (efficient for columns with few distinct values, like order status).
The trade-off that always needs mentioning:
The practical rule: only index columns that regularly appear in WHERE, JOIN, or ORDER BY clauses — indexing everything “just to be safe” is one of the most common reasons a system’s write performance degrades over time.
When the volume of files (images, videos, logs, backups) grows too large for a single server to hold, or needs to be accessed from multiple places at once, a distributed file system lets you store files across many servers while still accessing them as one unified file system — the application never needs to know which node a file actually lives on.
The typical architecture has two kinds of nodes: a metadata server (tracks where a file lives, who owns it, access permissions — corresponding to the “Metadata Server” in the template diagram) and block/data servers (store the actual file content, usually split into blocks and replicated across nodes to guard against data loss). Classic examples: HDFS (Hadoop Distributed File System), Google File System (GFS) — the foundation of today’s entire big-data processing ecosystem.
A notification system is responsible for sending notifications to users — email, push notifications, SMS — often at large scale (millions of users at once in some cases, like promotional announcements).
A properly designed one almost always goes through a message queue: a business service (e.g. an orders service) doesn’t send emails directly; it pushes a message onto a queue (“order #123 confirmed”), and a separate notification service reads the queue and handles the sending logic (choosing the channel, template, retrying on failure). This approach:
Searching with LIKE '%keyword%' in SQL doesn’t scale — it’s slow and has no understanding of meaning (it can’t tell that “run” and “running” are related). Full-text search solves this with an inverted index — a data structure that maps keywords to the list of documents containing them, along with position and relevance information.
Example: indexing “Nexlify builds scalable systems” and “Nexlify technical consulting” produces an inverted index like: Nexlify → [doc1, doc2], builds → [doc1], consulting → [doc2]. When a user searches “Nexlify”, the system immediately retrieves [doc1, doc2] without scanning any content. Elasticsearch (built on Apache Lucene) is the most widely used tool for this, usually deployed alongside the primary database (not replacing it — data is synced over to serve search specifically).
In a system with dozens or hundreds of nodes running in parallel, there are problems no single node can solve on its own: who is the leader in a cluster of services? Which config version is current, and which one should every node sync to? Which nodes are alive, which have died? This is the role of a distributed coordination service.
Core functions:
Classic examples: Apache ZooKeeper (used by Kafka, HBase), etcd (used by Kubernetes to store all cluster state), Consul (service discovery and config management in microservice architectures).
These 16 concepts form the basic vocabulary needed to understand almost any modern system architecture — from an e-commerce platform, to a fintech app, to internal enterprise systems. But knowing the names and definitions is only the starting point; the real value comes from being able to ask the right questions when evaluating a technical proposal — knowing when to reach for sharding instead of just adding a read replica, when a message queue beats a direct synchronous API call, when a system genuinely needs strong consistency and when eventual consistency is good enough.
As a CTO or business owner, the most effective way to use this isn’t to design systems yourself — it’s to use these concepts to ask your technical team the right questions: “Why this architecture instead of something simpler?”, “If traffic grew 10x tomorrow, what breaks first?”, “What are we trading away to get that scalability?” Being able to answer those questions — or knowing how to demand answers from your team — is the moment technical knowledge turns into sound technology investment decisions.
Adapted and expanded from “16 System Design Concepts I Wish I Knew Before the Interview” by Arslan Ahmad on Level Up Coding. If you’re a CTO or business owner who needs to evaluate your architecture or plan for scale, get in touch with Nexlify.
